Rated Data |
Rated Power |
10KVA |
Rated Current @400VAC |
21.1 |
Frequency |
50/60 Hz |
Rated Input DC |
800-1000 Vdc |
Power Factor |
0.7 Lag to 0.7 Lead |
Efficiency |
99% |

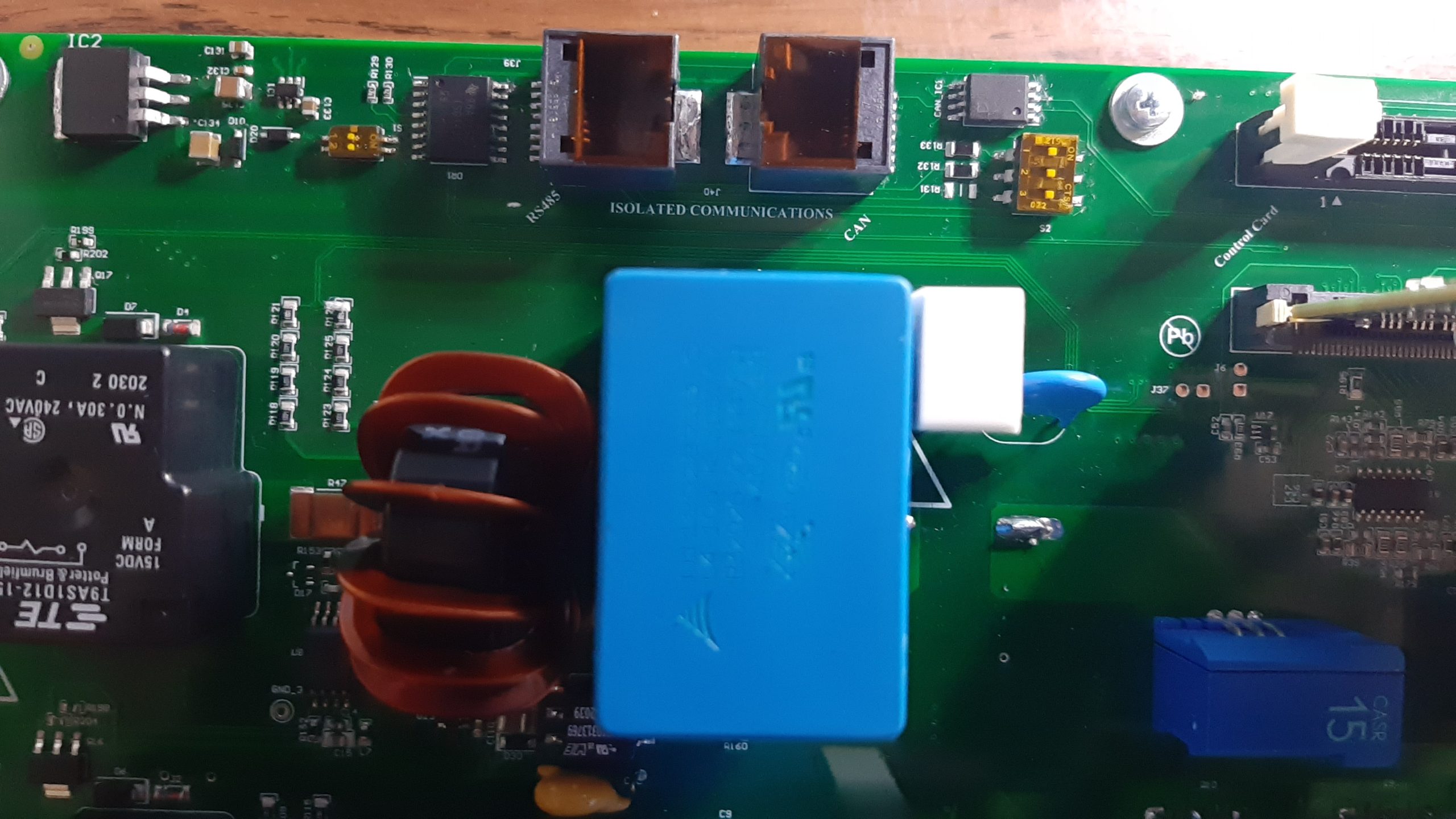

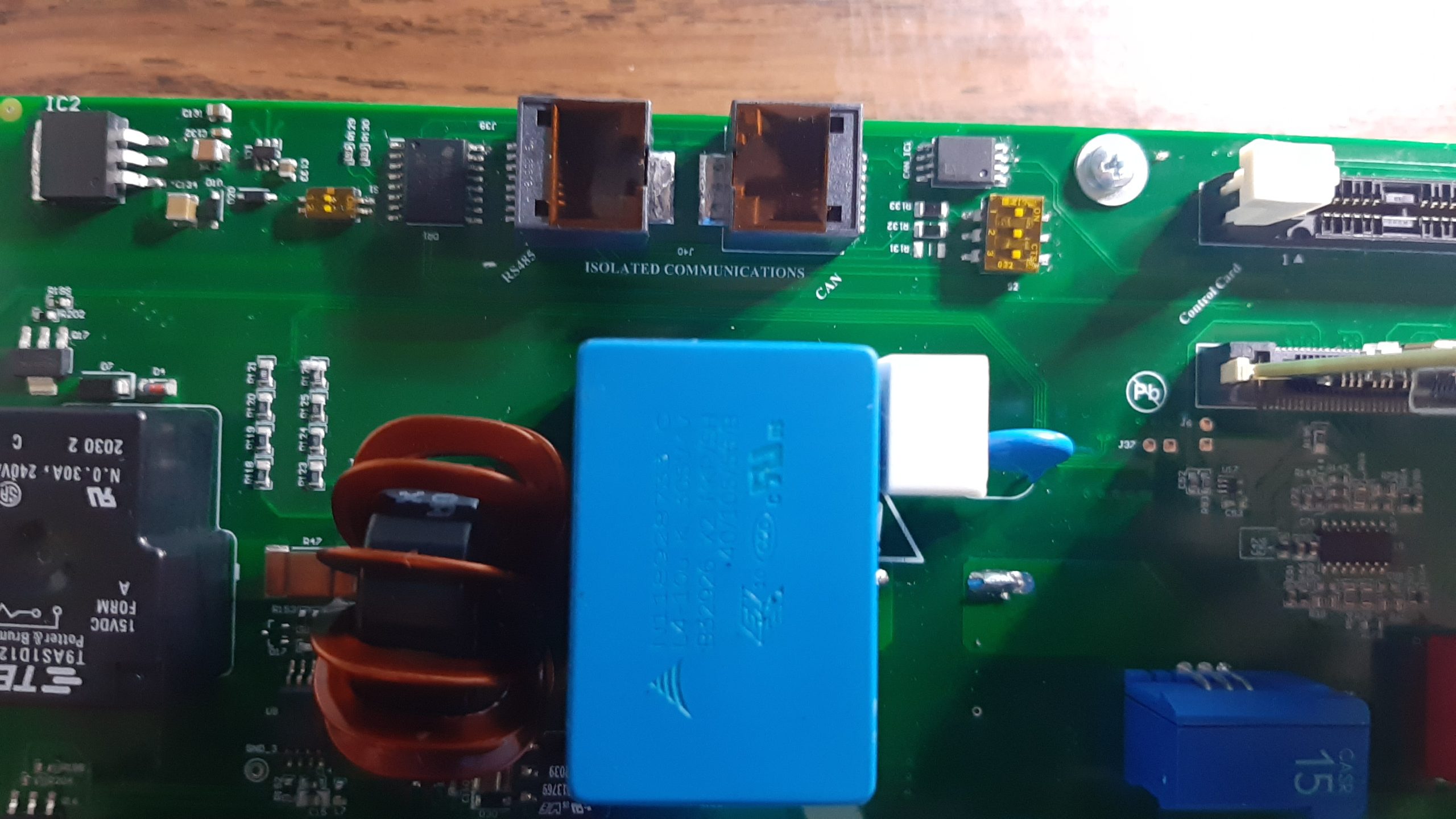

Installed Industrial Communication from Inverter Board |
CAN BUS |
#1 Port Isolated |
RS485 |
# 1 Port Isolated |

Available Communication from control Card |
USB |
From F28379D C Card – non-Isolated from Card and Isolated from Inverter |
RS232->USB |
Isolated Serial Port through JTAG Port |
Installed Cards On the inverter |

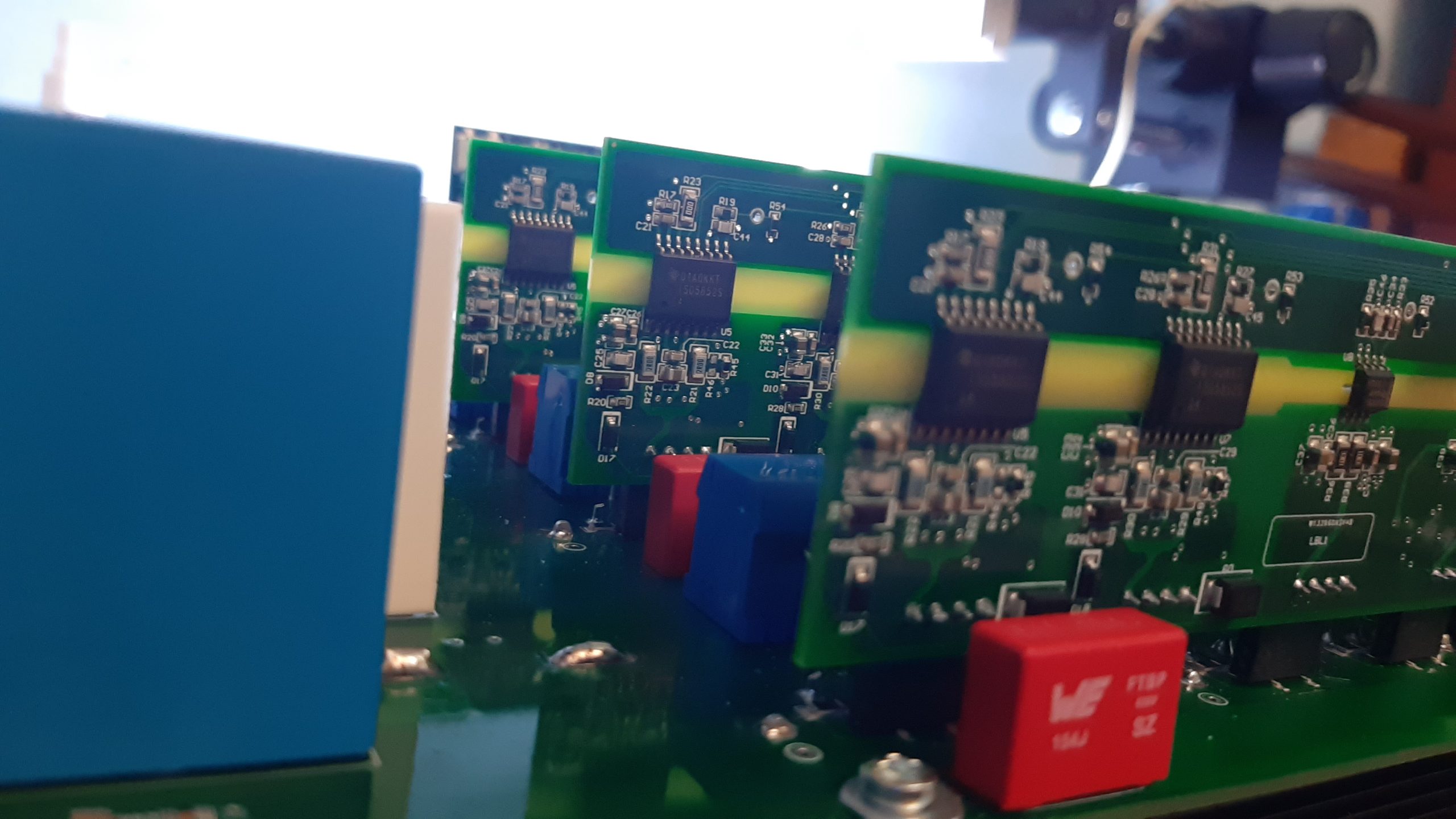

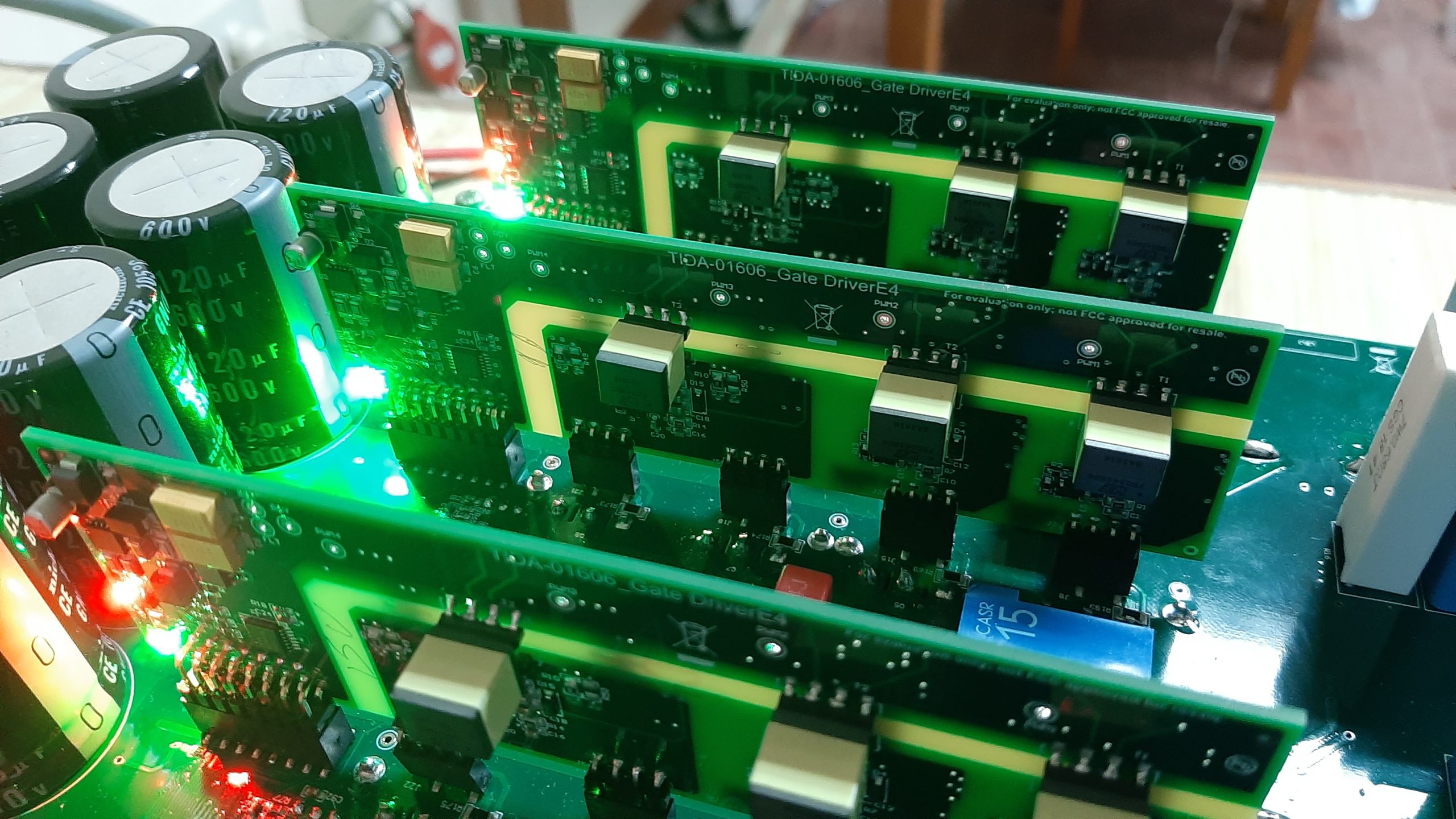

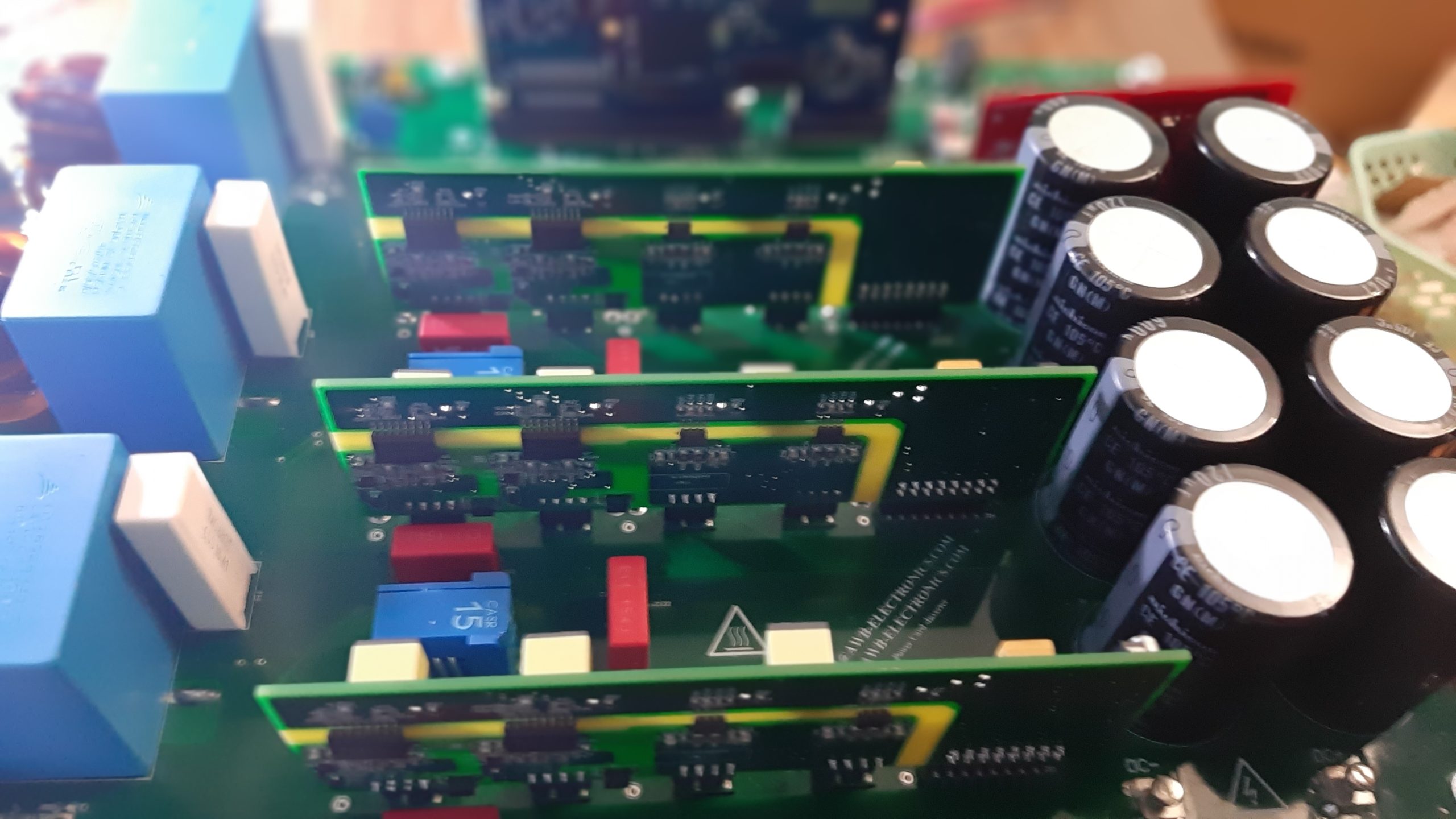

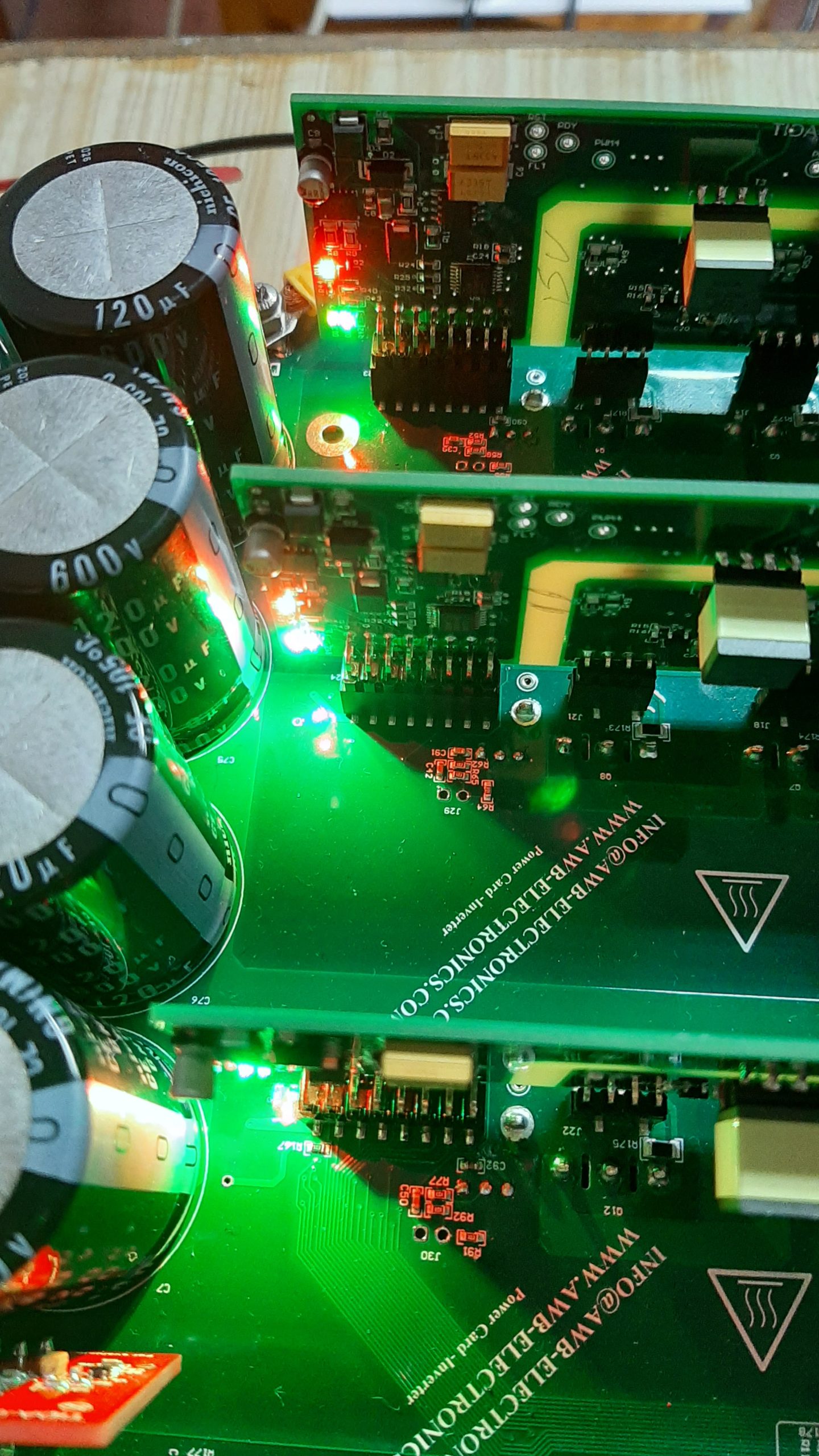

IGBT Drive Modules |
3 drive module each one has 4 channels |
HVDC Measuring Module |
#1 Module |

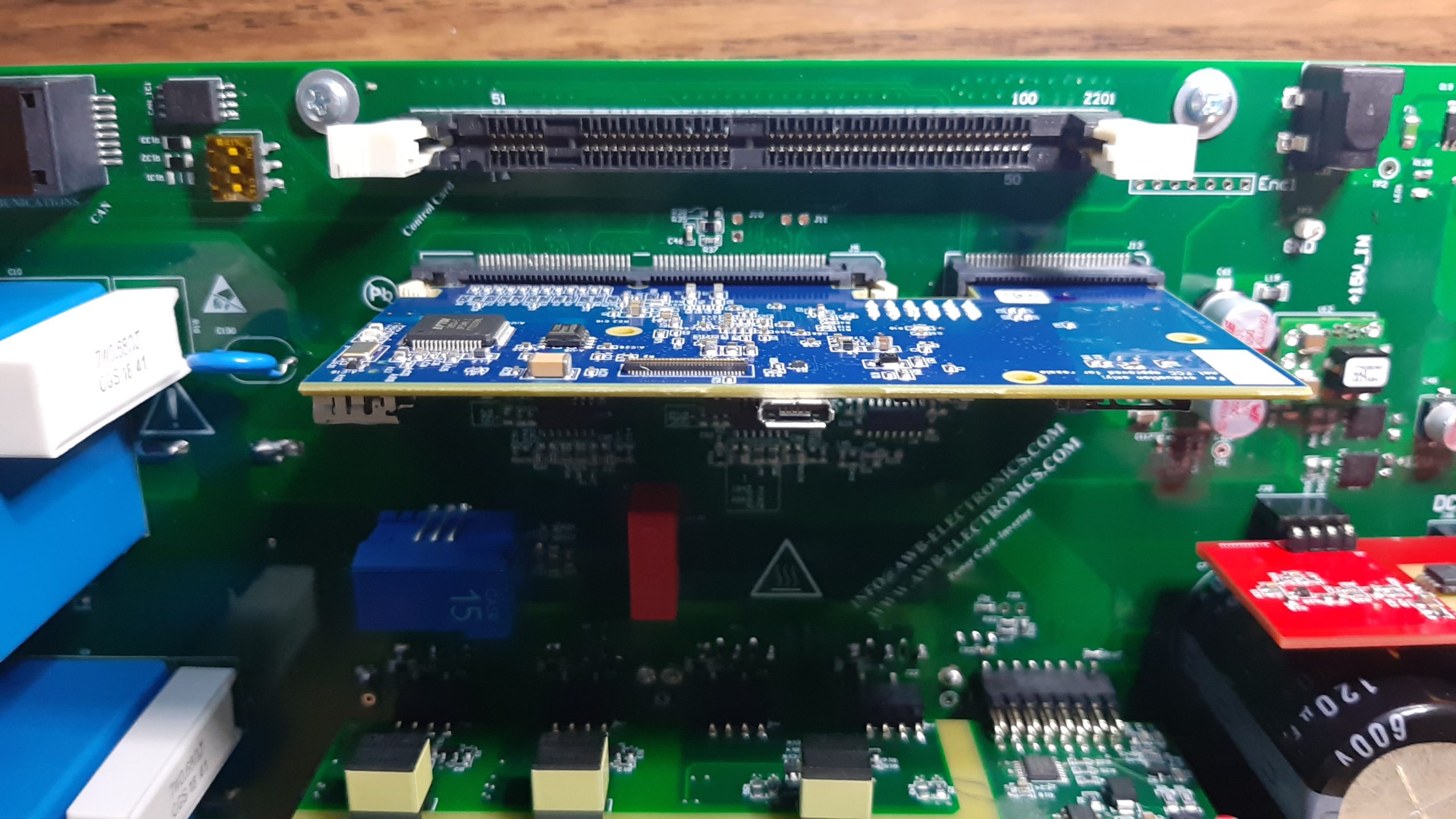

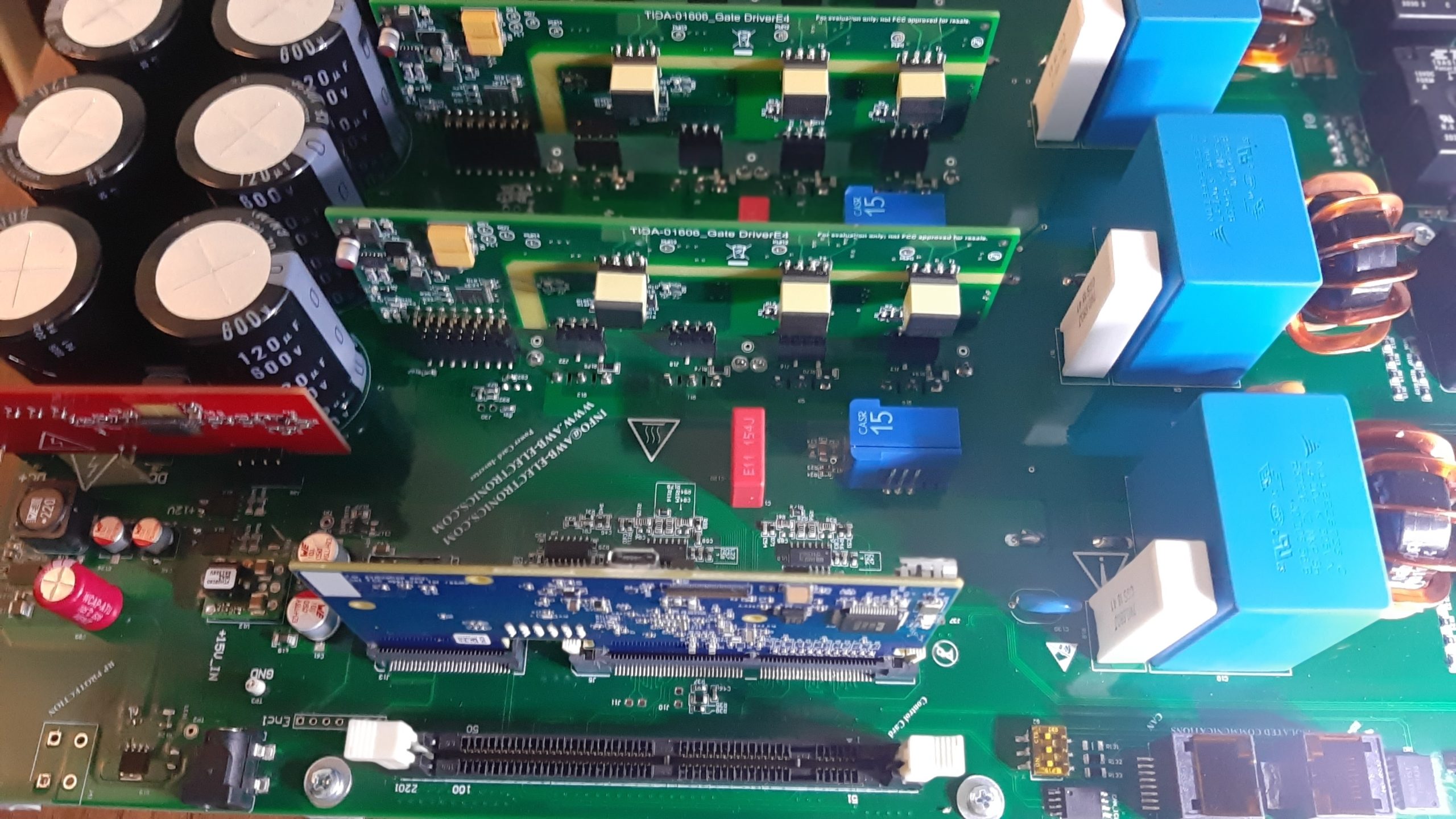

Control Card |
#1 Control Card DSP F28379D |

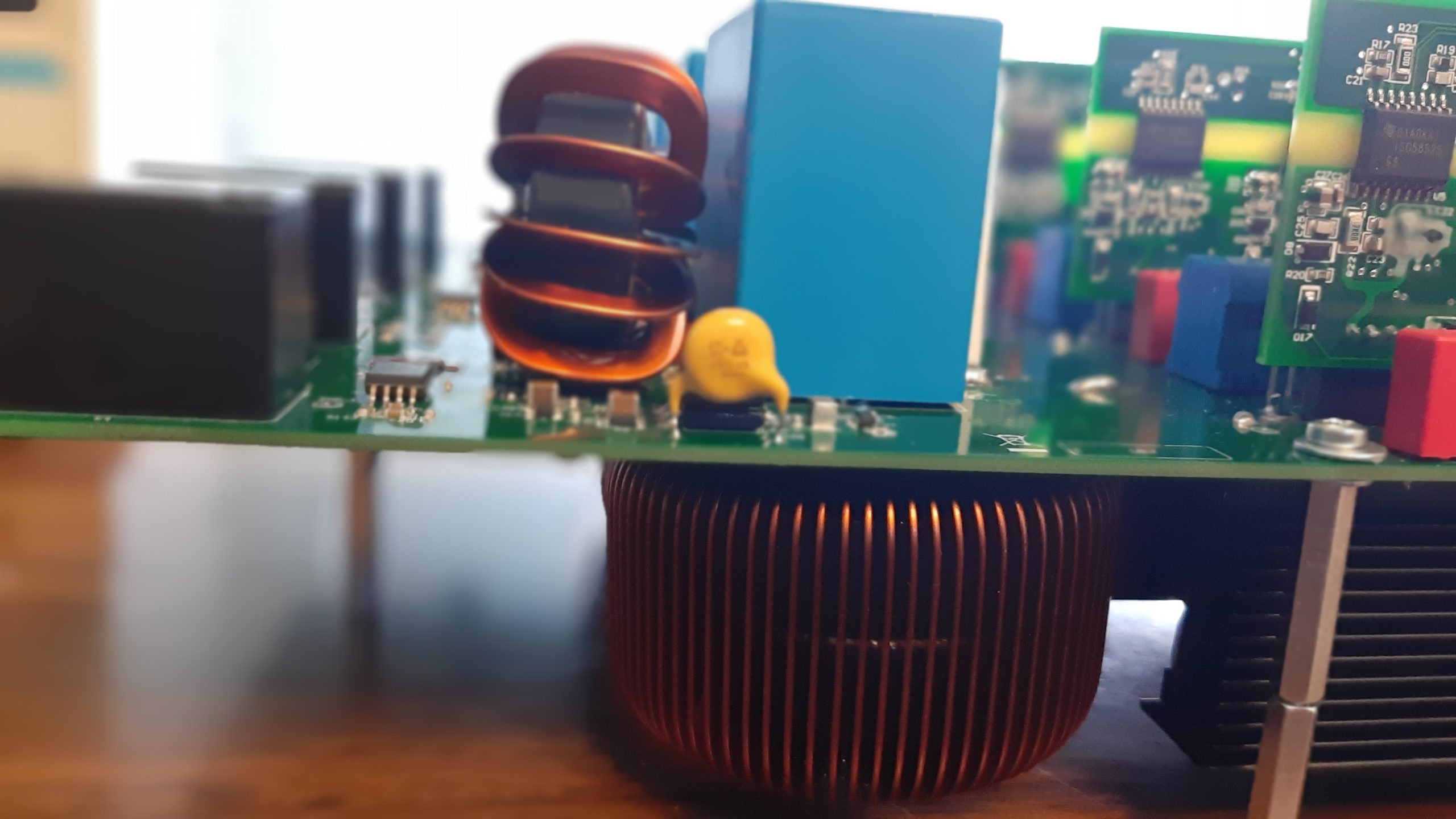

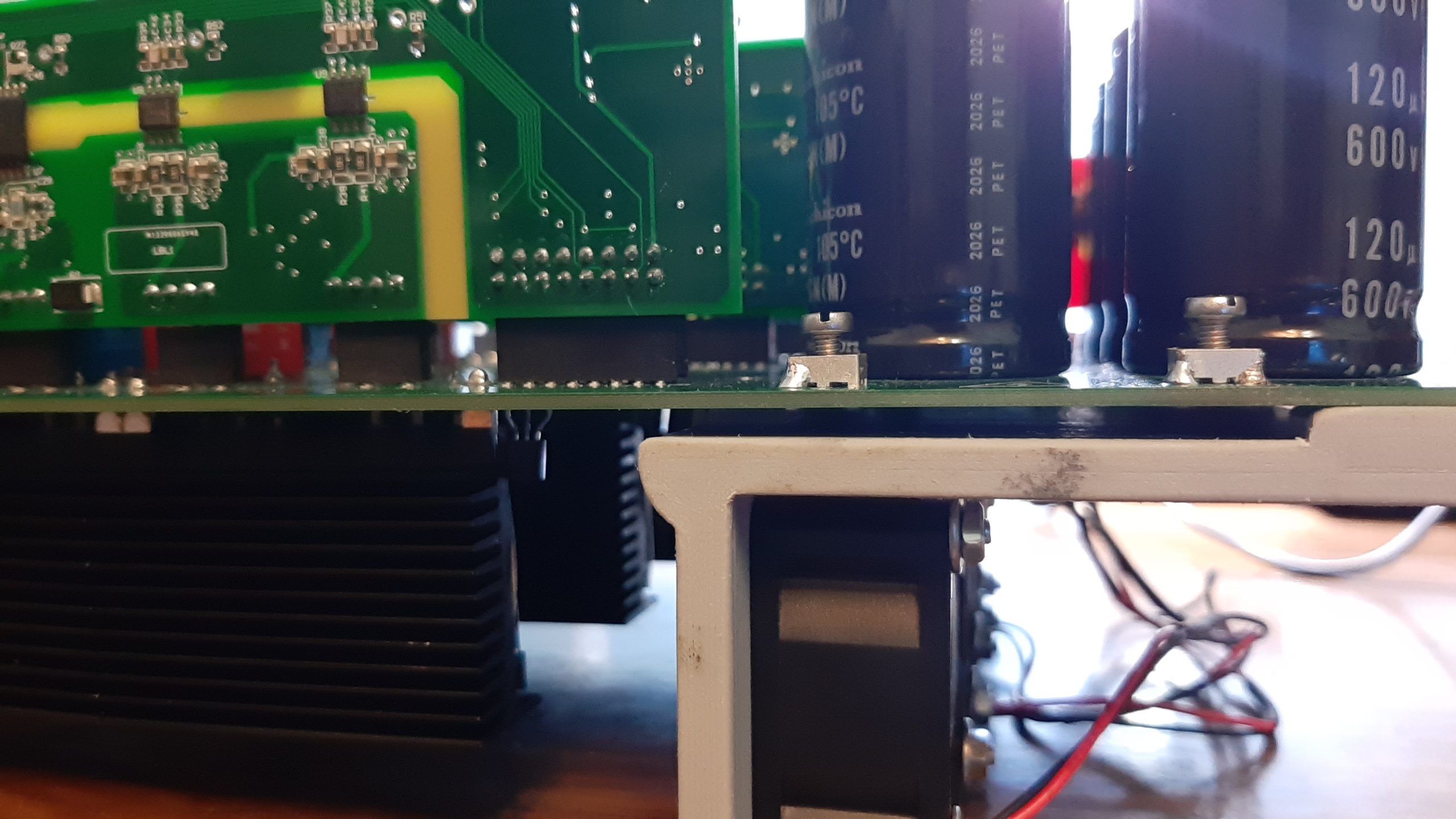

Cooling System |
#3 Fans with 6000 RPM for HS cooling |
